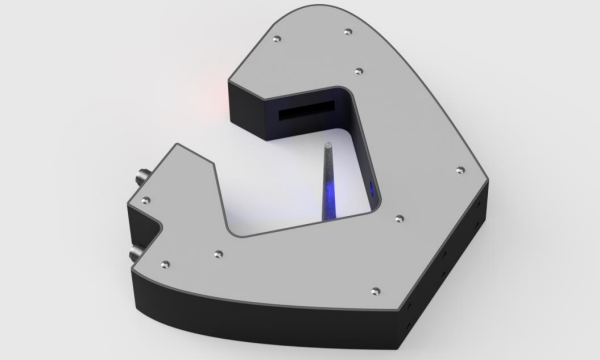

Diameter Measuring Device: TVG D7000 Series
Our advanced diameter measuring system offers non-contact measurement, ensuring accuracy and reliability for optimizing production in various industrial applications.
Introduction
Step into the next generation of precision measurement with the TVGD7000 series, an advanced collection of non-contact diameter measuring devices.
Building on the success of its predecessor, the TVGD5000, the TVGD7000 series incorporates cutting-edge laser collimation and diffraction techniques to deliver superior accuracy and reliability. Designed to cater to the stringent demands of industries such as building, automotive, and LAN wire & cable manufacturing, the TVGD7000 ensures unparalleled precision across a range of diameters from 100 microns to 12 mm.
Application & Uses
The TVGD7000 series is designed to excel in various industrial applications, providing critical benefits such as:
Upgraded Features
- Advanced Measurement Techniques: Uses a fusion of Laser Collimation and Diffraction techniques for unmatched precision.
- Wider Diameter Range: Capable of measuring diameters from 100 microns to 12 mm, catering to a broader range of industrial needs.
- Robust Construction: Features IP58-rated safety measures that protect components from water droplets, dust, and contaminants, ensuring reliable operation in harsh industrial environments.
- Ultra-fast Aperture Time: Enhances resistance to vibrations, making the device nearly 100% accurate even in challenging conditions.
Device Specifications
The TVG D7000 series is available in several models, each tailored to specific measurement requirements:
-
1. TVG D7012:
- Measuring Range: 0.1 - 12 mm
- Measuring Frequency: 1.5 kHz/Axis
- Accuracy: ± 0.5 µm
- Repeatability: ± 0.1 µm
- Resolution: 0.001 mm
- Ideal For: Precision applications in small diameter wire and cable manufacturing.
-
1. TVG D7050:
- Measuring Range: 0.2 - 50 mm
- Measuring Frequency: 1.5 kHz/Axis
- Accuracy: ± 0.5 µm
- Repeatability: ± 0.2 µm
- Resolution: 0.001 mm
- Ideal For: Medium diameter products, providing a balance between range and accuracy.
Data Processing, Interfaces, and Controlling
The TVGD7000 series is equipped with RS485, Ethernet, and USB outputs as standard, with additional industrial communication interfaces available upon request. It seamlessly integrates with TVGxDx series display and control systems, offering superior results in automatic controlling, data storage, and live/post-production analysis.
Specification Summary
- Measurement Technique: Advanced laser collimation and diffraction technology.
- Diameter Range: 100 microns to 12 mm.
- Measurement Frequency: Up to 1.5 kHz per axis.
- Accuracy: Up to ± 0.5 µm.
- Repeatability: Up to ± 0.1 µm.
- Resolution: 0.001 mm.
- Operating Temperature: -10°C to 50°C.
- Humidity: < 90% Relative.
- Interface: RS485, Ethernet, USB.
- Durability: High MTBF, IP58 rated.
Conclusion
The TVGD7000 series sets a new benchmark in precision measurement, providing enhanced features and greater versatility compared to the TVGD5000. It is designed to meet the exacting needs of modern manufacturing environments, ensuring superior quality and productivity. Embrace the future of precision measurement with the TVGD7000 – your partner in achieving excellence.
